Catnic External Solid Wall Lintel CN71A 1200mm (28 Lintels)
Catnic External Solid Wall Lintel CN71A 1200mm (28 Lintels)
Couldn't load pickup availability
Share

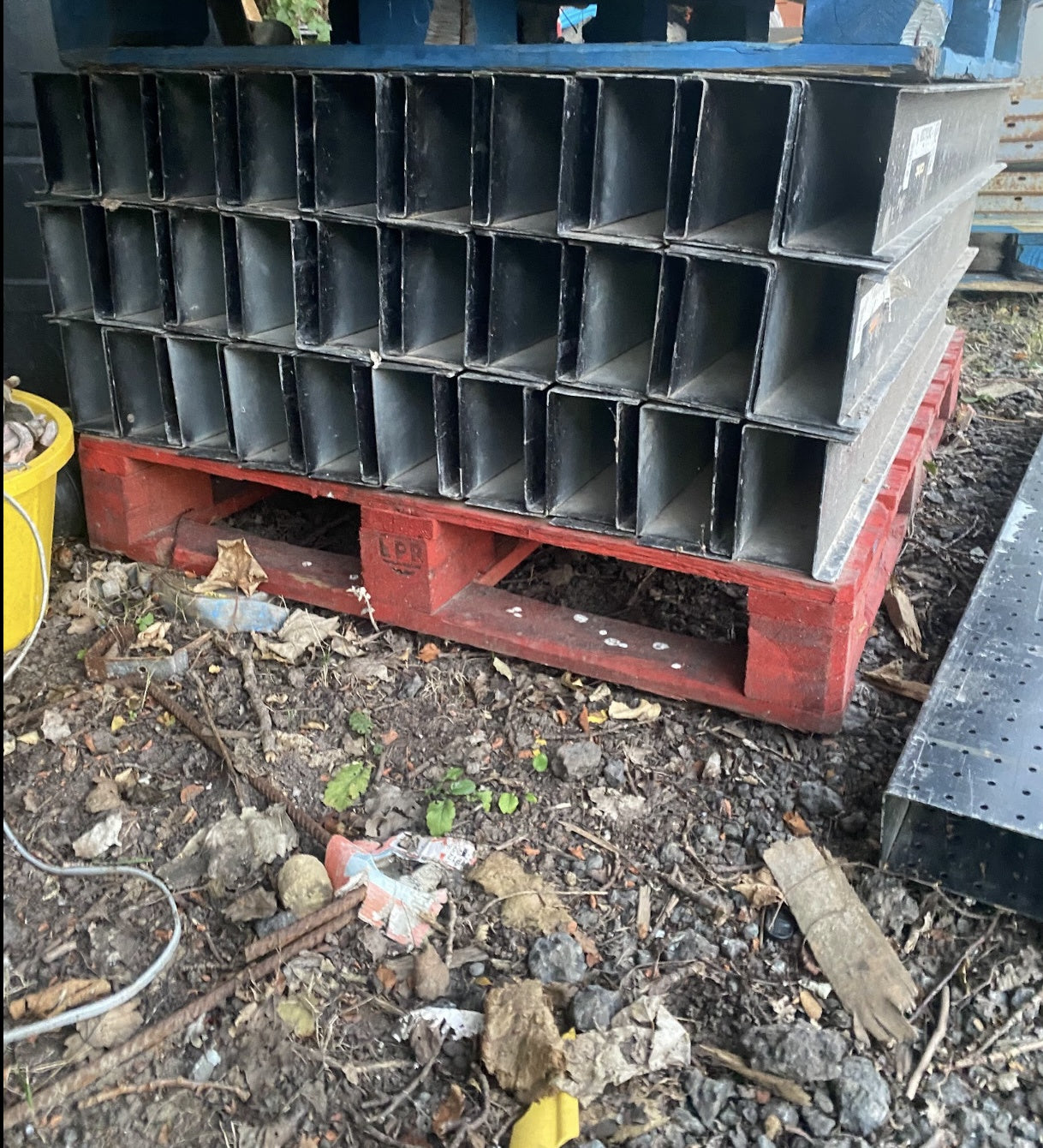

28 Lintel Bundle
£1176 Inc VAT
Catnic CN71A1200
200 x 215 x 1200
Standard lengths are available in 150mm increments.

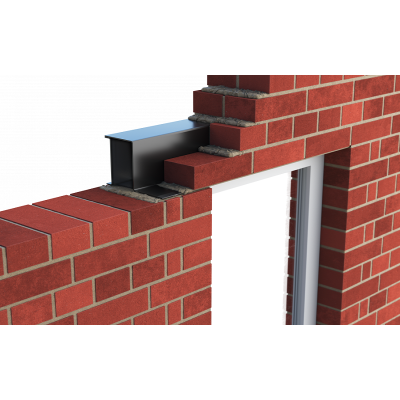

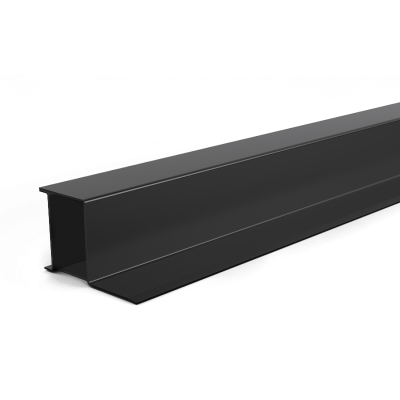

• External solid wall lintels are manufactured from galvanised steel and powder coated for extra protection.
• Duplex Corrosion protection system ensures optimum durability and longevity.
• Integral plaster key with staggered slots to the inner flange and ribbed underside of insulation.
• The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
• For solid wall construction in excess of 250mm an appropriate Open Back Lintel can be utilised, contact Catnic Technical Services for details.
• CN71 and CN81 lintels can also be used as heavy duty wall eaves lintels for 70mm to 100mm cavities.
| MPN | CN71A1200 |
|---|---|
| Type | External Solid Wall Lintels |
| Loading | Standard Duty |
| Length | 1200mm |
| Weight | 11.160000 |
| Manufacturer | Catnic |
| Sap Id | cn7112-S |
| Unit of measure | each |

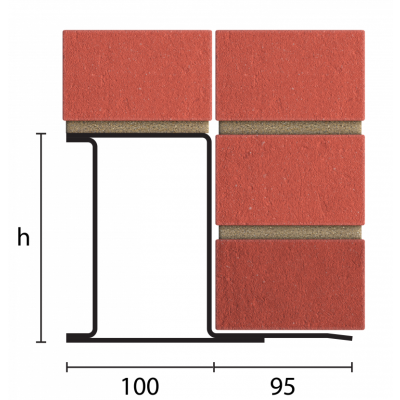

| Standard Lengths (mm) | SWL (kN) | Weight (kg/m) | Nominal height 'h' (mm) |
|---|---|---|---|
| 900 - 1500 | 29 | 9.3 | 143 |
| 1650 - 2100 | 27 | 9.3 | 143 |
| 2250 - 2700 | 20 | 9.3 | 143 |
